Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc.
| ELECTRICAL DATA(STC) | ||
| Model Type | FG 70M-36 | FG 75M-36 |
| Peak Power(Pmax) | 70W | 75W |
| Maximum Power Voltage(Vmp) | 19.85 | 20.55 |
| Maximum Power Current(Imp) | 3.53 | 3.65 |
| Open Circuit Voltage(Voc) | 23.44 | 23.82 |
| Short Circuit Current(Isc) | 3.73 | 3.85 |
| Module Efficiency(%) | 17.52 | 18.77 |
| * STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C | ||
Detailed Introduction
We support custom product packing accroing to your needs
Wooden Box Packing ,Pallet Packing ,Carton packing
About us
Future Green Technology is committed to creating a green future
Rooting ourselves in the new energy industry for decade,we manufacture high quality
solar panel and battery and win high reputation from hundreds customers globally
Production Process
Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-50W-01 Size: 570*540*25mm Weight:3.3kg Min order:10 pcs Lead time: 25days OEM:Available Original Region:China Maximum power:55W Panel Efficiency:21-22.5% Soalr cell :A-grad
APRENDE MÁS

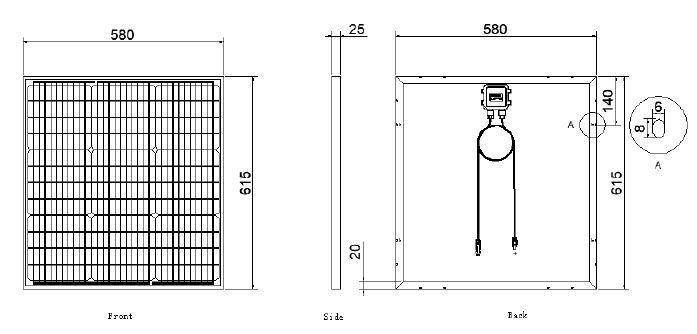

Photovoltaic glass curtain wall products can be widely used in building shading systems, building curtain walls, photovoltaic roofs, photovoltaic doors and windows and other photovoltaic power generation.High quality,strong applicability,good output efficiency, low light effect,etc. Item No:FG-60W-01 Size :615*580*25mm Weight:3.75kg Min order:10 pcs Lead time : 25days OEM:Available Original Region:China Maximum power:65W Panel Efficiency:21-22.5% Soalr cell :A-grad
APRENDE MÁS
Células solaresMonocristalino 158,75 × 158,75 mmOrientación de la celda60 celdas (6 x 10)Dimensiones del módulo1665 × 1002 × 35 milímetrosPeso18,7±3%Vaso4,0 mm para PERC mono; 3,2 mm para estándar mono,Vidrio solar de alta transparencia, recubierto de AR y templado al calor.Hoja traseraBlancoMarcoAleación de aluminio anodizado plateado.Caja JClasificación IP 67 o IP 68cablesCable Tecnología Fotovoltaica 4,0mm², 1200 mmConectorPaíses de la UE: 28 MC4 / UTX / TS4, Países no pertenecientes a la UE: 28 QC4 / TS4
APRENDE MÁS
60 células monocristalinas.17,4% Máxima EficienciaGarantía de salida de potencia de 25 linealesNúmero de artículo: 30V250WDe color negroRango de precios: 1~10/$80Rango de precios: 11~100/$75Rango de precios: 101~999999/$70Orden mínima: 1Región original: ChinaPlazo de ejecución: 15 días
APRENDE MÁS
