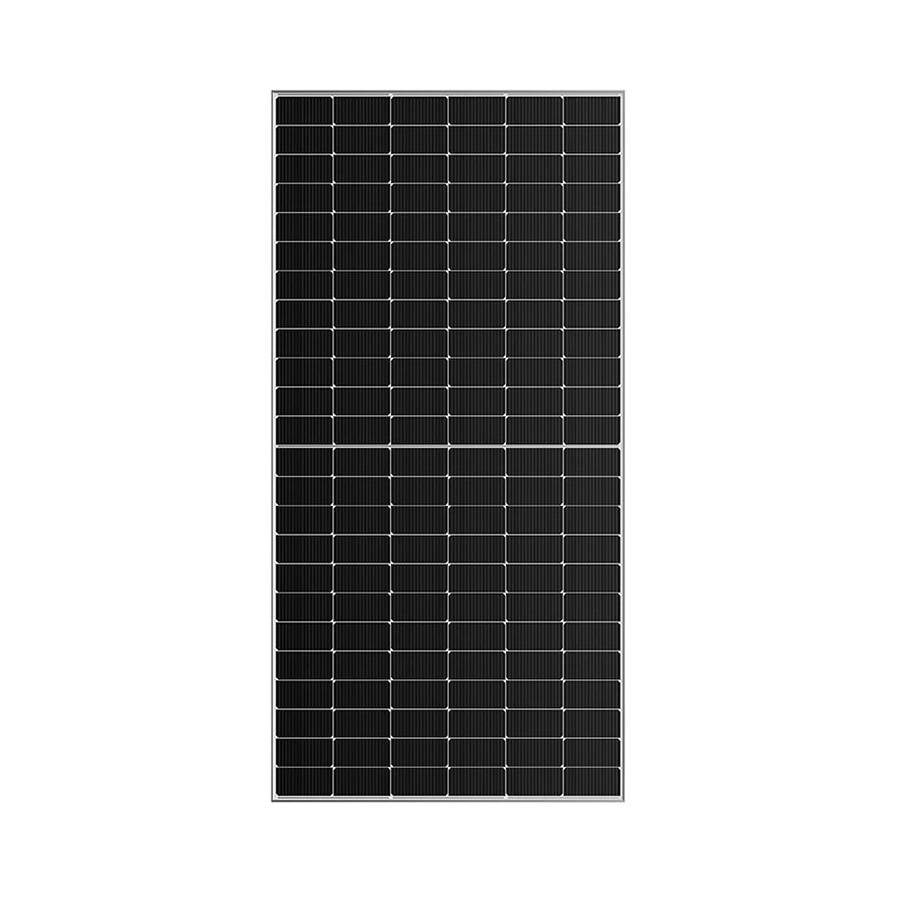

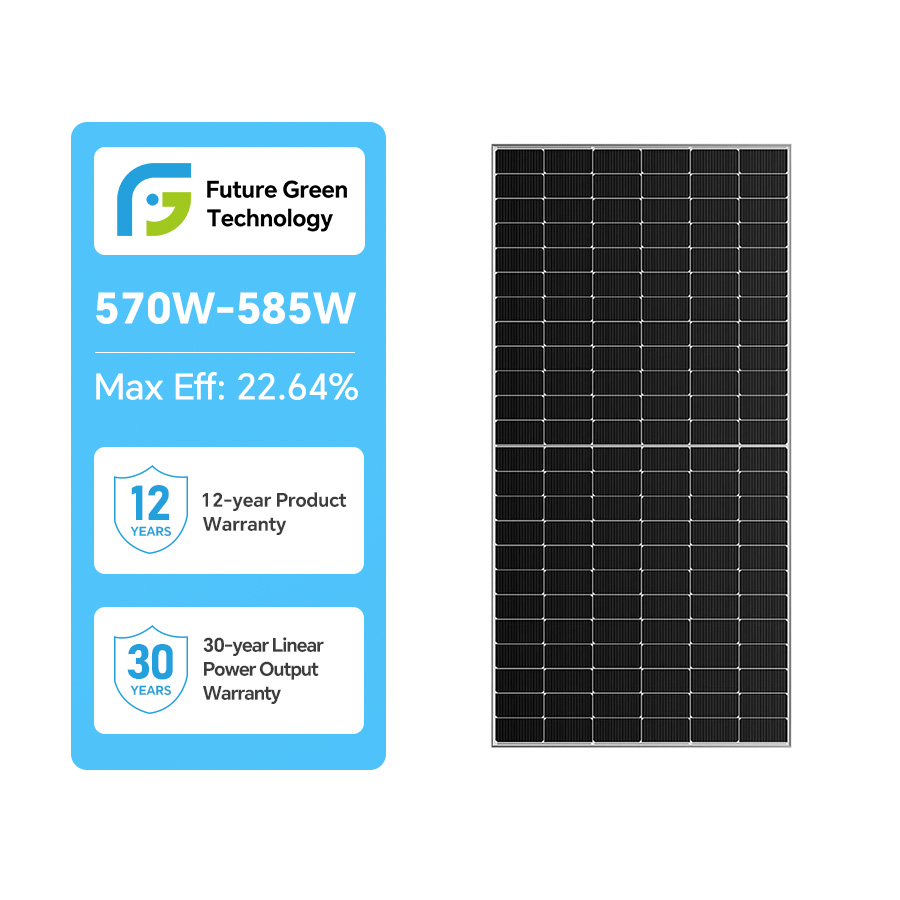

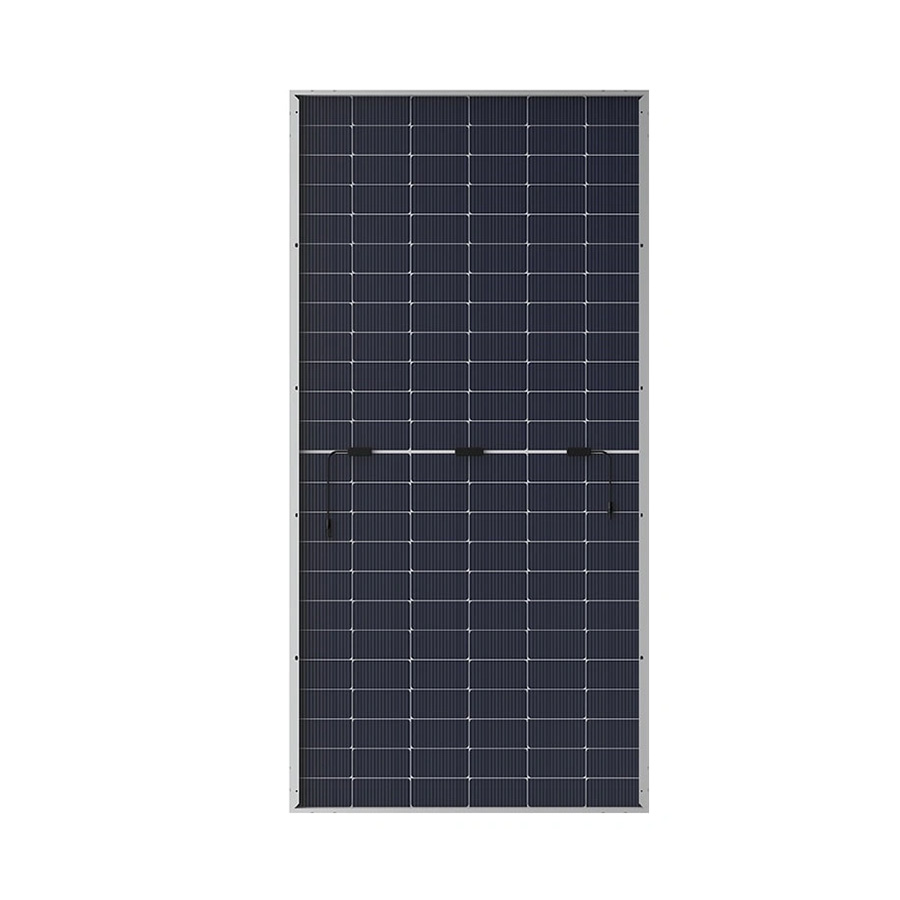

M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels
M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels
M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels
M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels
M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

Adopting 182mm SMBB (Super Multi BusBar) Monocrystalline Half Cut N-Type Cells Technology For High Power Solar Cells, Higher Component Power Effectively Reduces System BOS Costs

  •  Item No: FG580-M10N
  •  Capacity: 570-585W
  •  Cells Number: 144Pcs
  •  Min Order: 36 PCS
  •  Module Efficiency(%): 22.52%

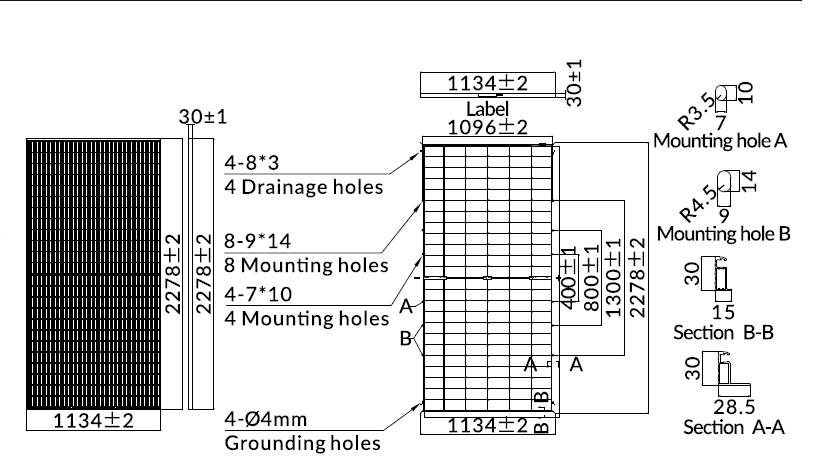

  •  Dimemsions: 2279*1134*30MM
  •  Weight: 31.5KG
  •  Packing Number: 36Pcs/Pallet
  •  40'HQ Container: 20 Pallets / 720 PCS
Consigue una cotización WhatsApp Descargar

M10N 570W 575W 580W 585W 182-182mm Solar Cell Mono LECO N-Type BIFACIAL Half Cut Solar Panels

High-efficiency monocrystalline solar panels with N-Type half-cut cells technology for superior performance

570W 575W 580W 585W 590W

KEY ADVANTAGES

1

Higher Efficiency

132 monocrystalline half-cut N-Type cells 182 x 91 mm, delivering superior energy output

2

All Black Design

Premium appearance with reduced light pollution

3

Certified Quality

Junction box certified according to IEC 62790, IP68 approved with 3 bypass diodes

TECHNICAL SPECIFICATIONS

Solar Cells
Monocrystalline N-Type
Number of Cells
144 (6x24)
Mechanical Load Test
5400Pa
Front/Back Glass
2.0 mm coated tempered glass
Frame
Anodized aluminium alloy
Junction Box
IP68 rated (3 bypass diodes)
Output Cables
4.0mm², length customizable
Connectors
MC4 Compatible

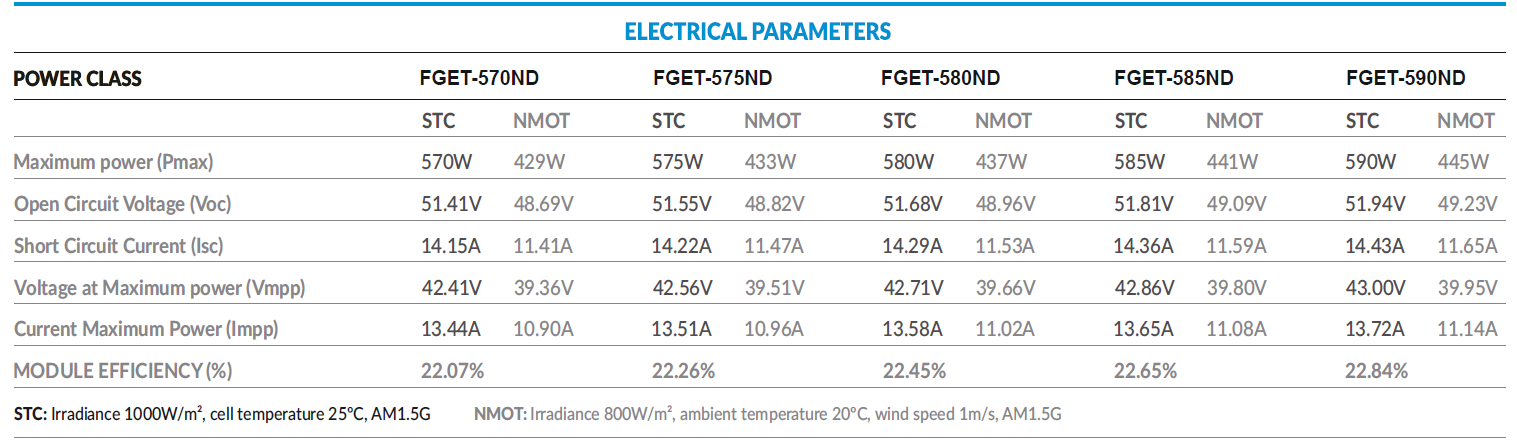

ELECTRICAL PARAMETERS

STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G

PARAMETER FGT-570ND FGT-575ND FGT-580ND FGT-585ND FGT-590ND
Standard Test Conditions STC STC STC STC STC
Maximum power (Pmax) 570W 575W 580W 585W 590W
Open Circuit Voltage (Voc) 51.41V 51.55V 51.68V 51.81V 51.94V
Short Circuit Current (Isc) 14.15A 14.22A 14.29A 14.36A 14.43A
Voltage at Maximum power (Vmpp) 42.41V 42.56V 42.71V 42.86V 43.00V
Current Maximum Power (Impp) 13.44A 13.51A 13.58A 13.65A 13.72A
MODULE EFFICIENCY (%) 22.07% 22.26% 22.45% 22.65% 22.84%

BIFACIAL OUTPUT - REARSIDE POWER GAIN

GAIN PARAMETER FGT-570ND FGT-575ND FGT-580ND FGT-585ND FGT-590ND
5% Maximum power (Pmax) 599W 604W 609W 614W 620W
Module Efficiency STC (%) 23.17% 23.37% 23.57% 23.78% 23.98%
15% Maximum power (Pmax) 656W 661W 667W 673W 679W
Module Efficiency STC (%) 25.37% 25.60% 25.82% 26.04% 26.27%
25% Maximum Power (Pmax) 713W 719W 725W 731W 738W
Module Efficiency STC (%) 27.58% 27.82% 28.07% 28.31% 28.55%

FAQ

Q37:
The products have some problems.
A37:
We are sorry to hear that. Would you pls show us some pictures or videos? I'll let our engineers check, and we will give you a satisfactory reply.
Q38:
How can I make sure the mass goods quality?
A38:
You are really a professional buyer, we will arrange the first quality inspection when the goods are 30% complete, the second quality inspection when the goods are 70% complete, and the last inspection after the Mass goods done. We will update the photos and videos for you each quality inspection then you will know your Goods status and progress.
Q39:
Do you have warranty?
A39:
5 years for solar panel, 2 years for controller/inverter/battery. More year for option.
Q40:
How about the quality of your products?
A40:
You can rest assured about the quality. Reliability is our strong point. We have cooperation with Huawei. Our products are using environmental & friendly materials. Pass a full set of safety certification.
Q41:
Is it possible to return or exchange the goods?
A41:
Hello, we will arrange personnel to inspect all the goods before shipment. We have spot checks for functional products in the middle of production, and we will carry out a second spot check when warehousing. If there is no problem with the product quality, we will arrange shipment. If there is any problem, we will not ship it. However, if the arriving customer finds a quality problem with the product, we will cooperate with them to deal with it, but we cannot return it.
FAQ Support Image



PRODUCT COMPONENTS & FEATURES

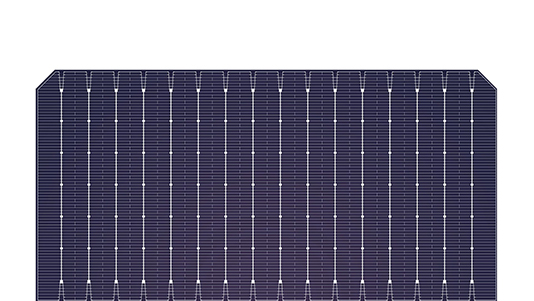

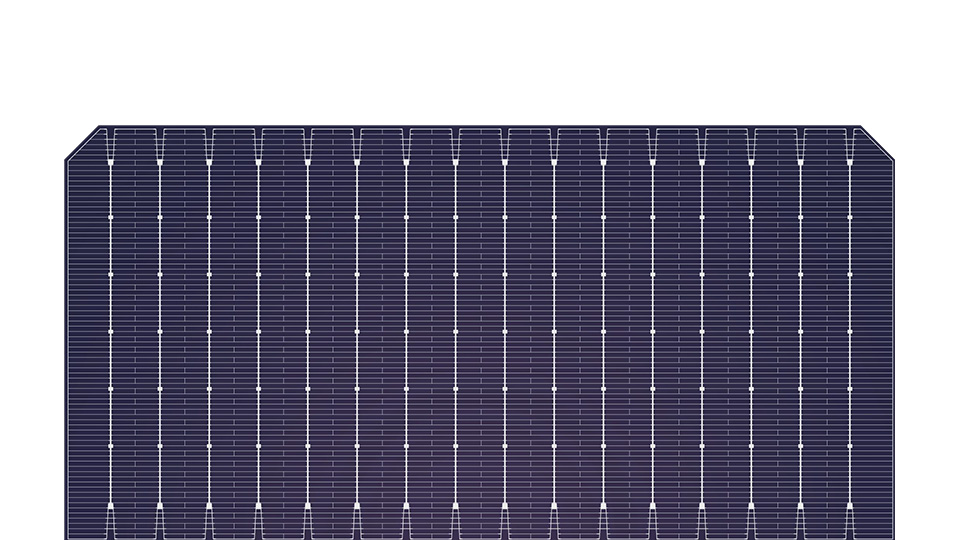

M10 16bb solar cell - High efficiency MBB PV cell

Solar Cell

• High efficiency MBB PV cell
• Uniform color consistency
• Anti-PID technology
• Germany standard cell quality
• Full performance testing

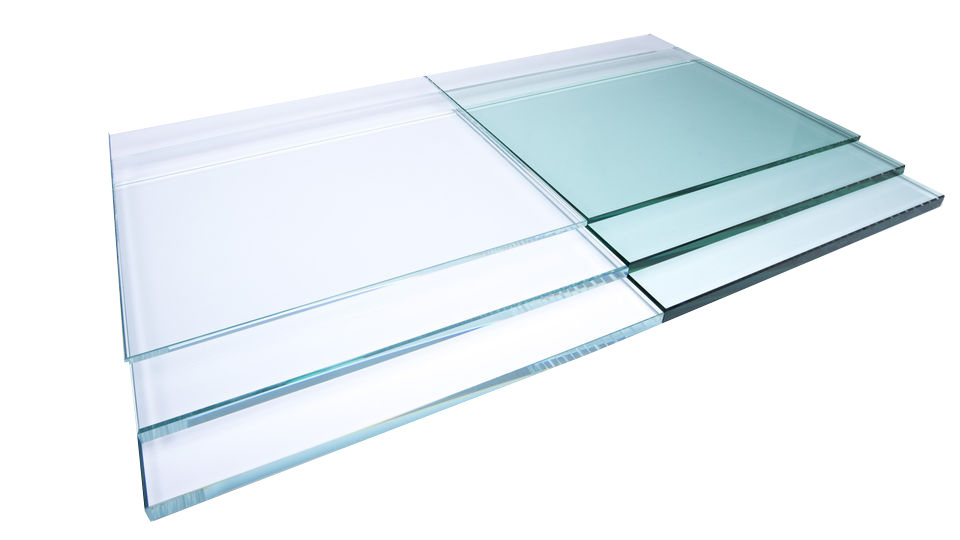

Front Glass - Low iron tempered glass

Front Glass

• Low iron tempered glass
• 2% increased translucency
• 2% increased module efficiency
• Self-clean function
• 25 years service life

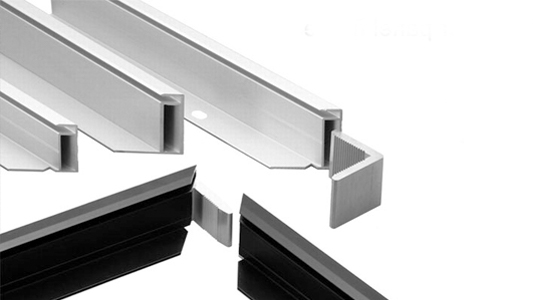

Frame - Anodized aluminum alloy

Frame

• Stock-size availability
• Silvery and black options
• 30-150mm thickness range
• Humanized design
• Stress tested for durability
Junction Box - IP67 protection

Junction Box

• Conventional & custom editions
• Quality diode for safe operation
• IP67 protection level
• Efficient heat dissipation
• Reliable electrical connection

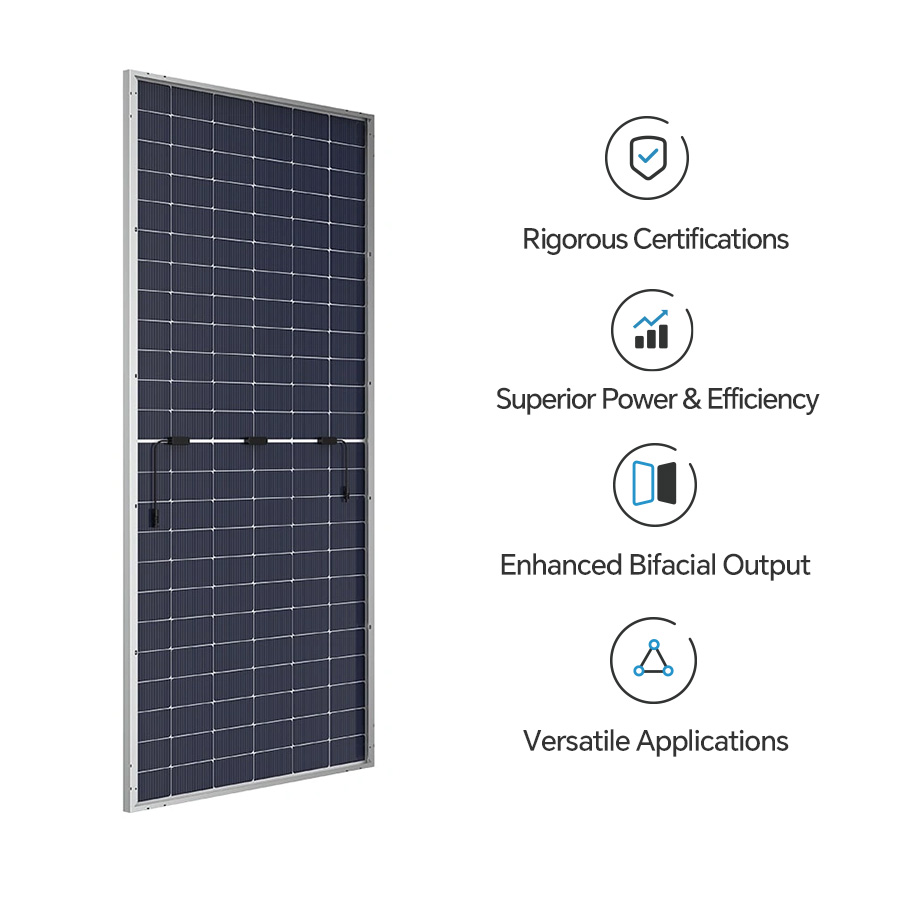

Bifacial Solar Cell - 15-30% power gain

Bifacial Technology

• 15%~30% power generation gain
• Excellent low-light performance
• Suitable for vertical installation
Back Glass - Double-glazed structure

Back Glass Special

• Double-glazed moisture barrier
• Excellent weather resistance
• Better heat dissipation



Damage-Free Delivery Guaranteed: Our Robust Packaging Process

We invest in superior packaging so you don't have to worry about shipping risks. Every layer has a purpose, ensuring your order arrives safely and ready for action.

The Packaging Process Visualized

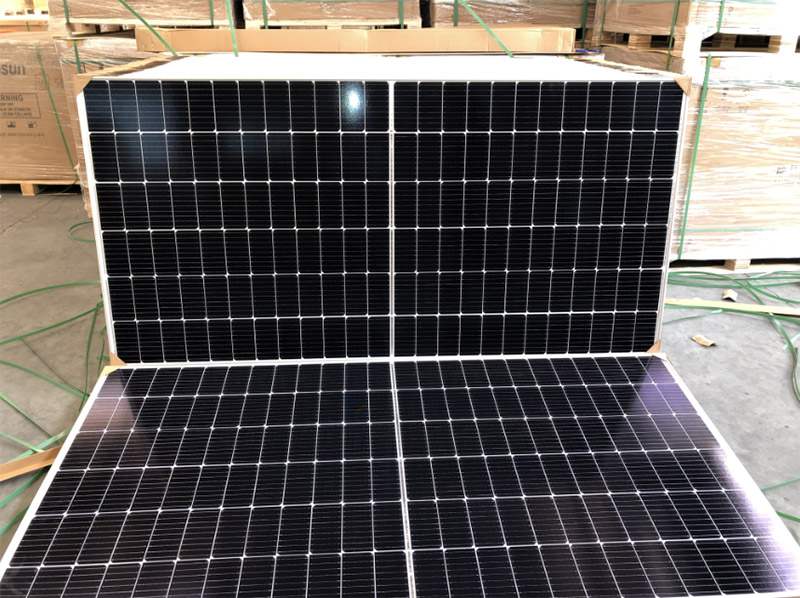

Solar Panel Package 1
1

Corner Protection

High-density padding safeguards the most vulnerable points of each panel.

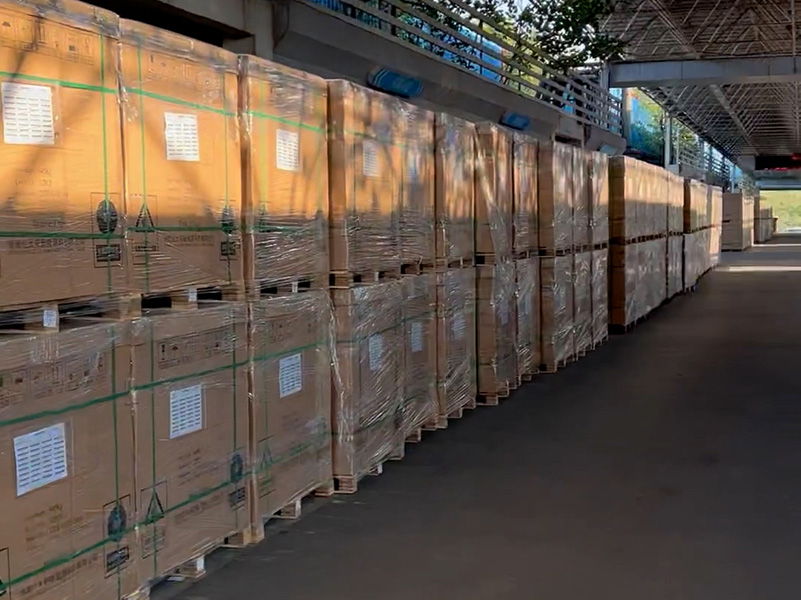

Solar Panel Pallets
2

Palletization & Wooden Crate

Panels are secured on a sturdy pallet and framed within a custom wooden crate for ultimate rigidity.

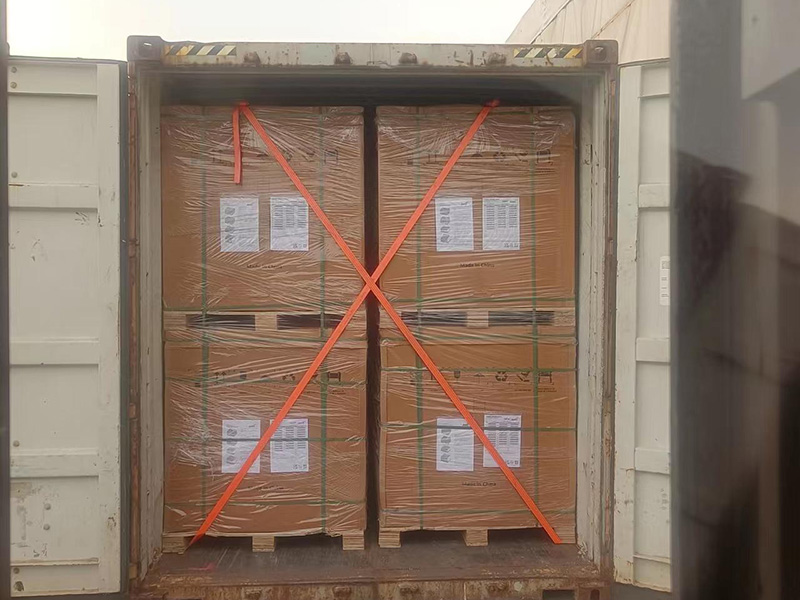

Solar Panel container loading
3

Locking & Sealing

PET steel straps and PE stretch film create an immovable, weather-shielded unit.

Key Logistics Data at a Glance

Product Size 2094 x 1134 x 30 mm
Pallets 36 pcs / pallet
40HQ Container Fits 22 pallets efficiently
📦

Packaging Advantages

Our multi-layered packaging system ensures maximum protection during transit. The combination of corner guards, individual boxing, palletization, and secure sealing minimizes the risk of damage, even in long-distance shipping.

Why Our Packaging Stands Out

🛡️ Damage Prevention

The multi-layer protection system reduces breakage to less than 0.1% during transit.

🌧️ Weather Resistance

PE stretch film and sealed edges protect against moisture and environmental factors.

📏 Space Optimization

Efficient pallet design maximizes container space, reducing shipping costs.

About FGET



Future Green Technology is committed to creating a green future.

Rooting ourselves in the new energy industry for a decade, we manufacturehigh quality solar panel and battery and win high reputation from hundredscustomers globally.

We also have over 100 long-term partners around the world. We sell high-quality batteries and solar panels, and also customize solar panel systems and solar power stations for our customers who need them. If you also want to customize a solar panel system, you can submit your daily electricity consumption requirements below, and we will immediately develop a detailed energy solution for you.
